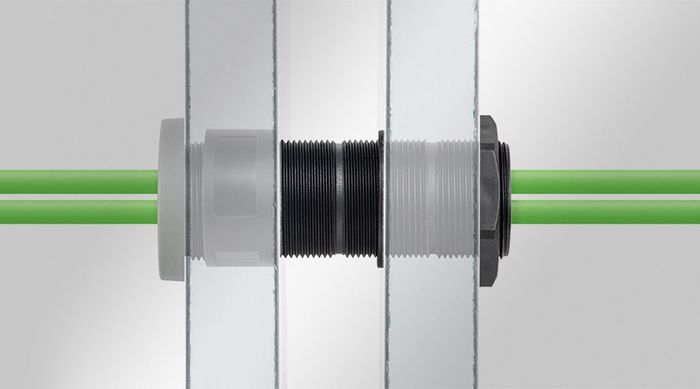

icotek cable glands and cable entry membranes are secured with a locknut. If the thread lengths are insufficient—for example, in sandwich panels or thick concrete walls—icotek offers a practical solution: the threaded sleeve!

The icotek threaded sleeve is available in four sizes—M25, M32, M50, and M63—and in three lengths—35 mm, 60 mm, and 120 mm. It represents a true innovation in the field of cable management. The different lengths can be easily combined or shortened. This makes it possible to accommodate both long runs and very specific lengths. Thanks to their design, almost any length can be achieved.

Cutting diameters: 30 / 37 / 55 / 68 mm (standard sizes for drill bits)

TE-MA Adapter

The TE-MA adapter is available as a complement to threaded sleeves, which can be assembled in almost any order. This allows threaded sleeves of the same diameter to be screwed in opposite directions, so that a cable gland or cable entry membrane can be installed on both sides. This enables cables to be routed through and ensures a watertight seal on both sides of the wall.

AB-M Cover Ring

Drills with a diameter greater than 80 mm are very commonly used to create wall openings in cleanrooms, cold storage rooms, buildings, and other structures. To enable the use of TE threaded sleeves for such openings, AB-M150 cover rings are used. More info »
