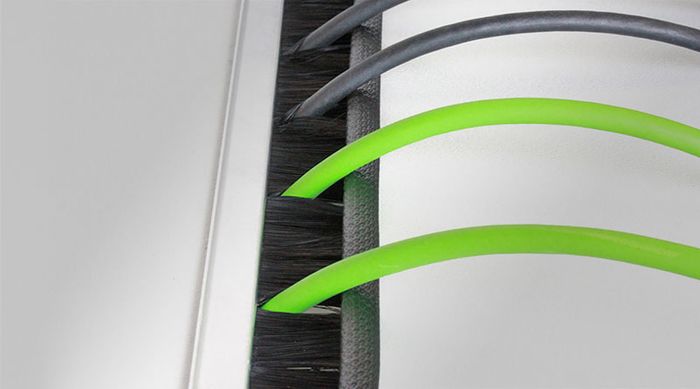

Brush-equipped cable grommets designed for all openings in the backs of standard, computer, or custom-built cabinets, as well as on machine frames.

Thanks to our innovative clamping profile, you can install the through-type brushes even on sheet metal bent at a 90° angle. The brushes can be removed from the profile at any time and mounted on any mounting version.

The cable management system can be adapted to fit almost all cabinet base panels from various cabinet manufacturers. The original cabinet floor panels do not need to be replaced; they will be used to install our brush-type cable management system, the KDR-BES-U.

There are 4 different models available:

No. 58210.xxxx - for wall thickness 1.5–2 mm, brush height 35 mm
No. 58215.xxxx - for wall thickness 1.5–2 mm, brush height 50 mm
No. 58225.xxxx - for wall thickness 2.5–3 mm, brush height 35 mm
No. 58230.xxxx - for wall thickness 2.5–3 mm, brush height 50 mm

KDR-BES-U cable-guide brushes are available in custom sizes:

X (mm) = length of the opening

Example of an order number:

X = 999 mm --> Order No. 58210.0999
